U kunt er zeker van zijn dat u Neres Small Spoke Circular Thread Rolling Machine uit onze fabriek koopt en wij zullen u de beste after-sale-service en tijdige levering bieden. Onze draadrol machine gebruikt voor het maken van draad op bouten, schroeven, bevestigingsmiddelen, schroefdraadstaven. Kan met antomatisch voedingsapparaat. Het kan radiaal of axiaal worden verwerkt en kan worden verwerkt met het overeenkomstige rollende wiel om gewone bouten, speciale bouten en tie -staven enz.

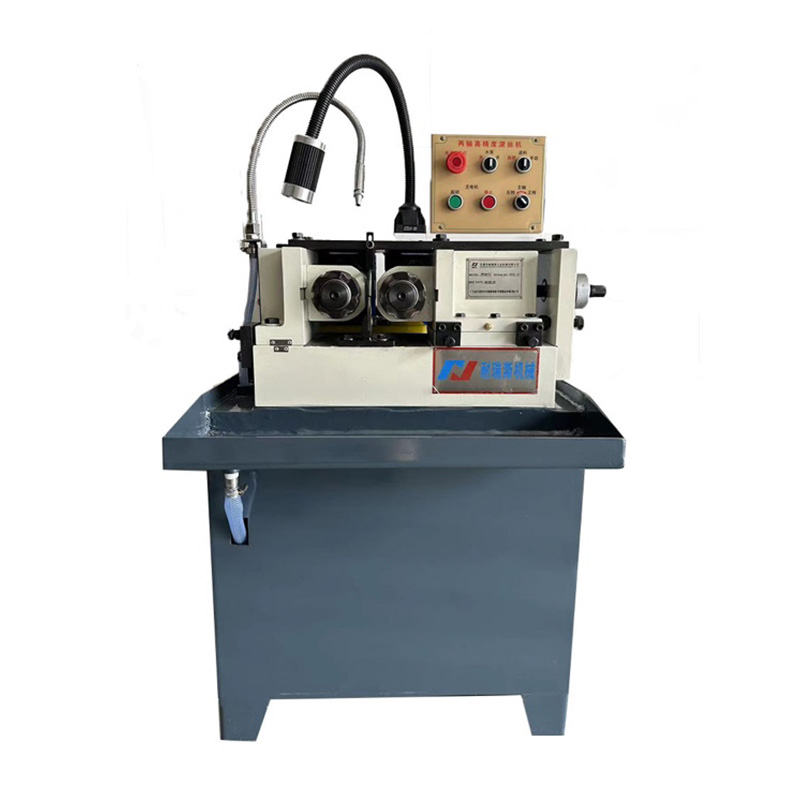

You can rest assured to buy NERES Small Spoke Circular Thread Rolling Machine from our factory and we will offer you the best after-sale service and timely delivery. Our thread rolling machine used for making thread on bolts, screws, fasteners, threaded rods. Can with antomatic feeding device. It can be processed radially or axially, and it can be processed with the corresponding rolling wheel to process ordinary bolts, special bolts and tie rods etc.
We are the manufacturer, good price for you. We have professional sales staff to answer any questions you ask. Help you choose the most suitable models. We have professional technicians. Solve any difficult problems about the operation of the machine for whole day
Our company provides Small Spoke Circular Thread Rolling Machine with easy-to-use controls to provide the best rolling results. This is designed using high-end raw materials with advanced technology to ensure excellent functional life and high tensile strength. It is provided in durable design with anti-abrasive coating to resist the effects of abrasion and rusting.
Type |
NRS-3T |
Max.diameter |
φ2~φ12 |
Pitch |
0.4P~1.75P |
Length |
28mm |
Spindle speed |
35 r.P.m |
Rolling dies diameter |
100mm |
Bore Diameter |
50.5mm keyway,8*4 |
Rolling dies width range |
10,15,30mm |
Dies spindle Min.~Max. |
95-120mm |
Rolling efficiency(pcs/min) |
20~40 |
Main power |
1.5HP(1.5kw) |
Net weight |
270kgs |
Gross weight |
320kgs |
Over dimensions.(LXWxH) |
900x800×900mm |
Shipping measurement(LxwxH) |
820x690x1000mm |
